Consolized?

OldFoo · Post by **OldFoo** » Fri Jun 20, 2008 6:39 am

I basically want to consolize a naomi (If I can find one...)

Basically, I'm probably just going to play MVC2 on it, so I want to build a tabletop control panel that will handle well.

I want it to run off a standard PC powersupply.

Since this is going to be a tabletop unit, the audio amp is not plugged in, because I'll plug it into a set of PC speakers.

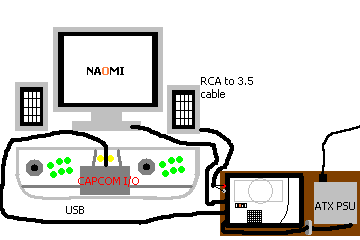

I invision it to look like this.

USB will be just a Cable coming out from inside the control box, the bottom will be made of sheet metal or MDB board

Preferably, I can mount the PSU and the NAOMI on one peice of wood.

Gimmie advice and offer help plz?

OldFoo · Post by **OldFoo** » Fri Jun 20, 2008 5:15 pm

MKL from Neo.Geo.com made a consolized unit.

OldFoo · Post by **OldFoo** » Wed Jul 09, 2008 7:53 am

Before I got my cab(s) I put my Naomi & PSU on a block of wood near the TV, and wired it to the VGA in on the telly & the audio in on my surround amp.

I then ran a USB cable & a power feed from the PSU to a JVS i/o in a seperate box, to which I mounted a standard Naomi CP

Not exactly consolised, but it worked the dogs :smt006

OldFoo · Post by **OldFoo** » Wed Jul 09, 2008 7:53 pm

I just consolized my Naomi cabinet with a dreamcast, if you need information send me a pm

Bye :smt006

OldFoo · Post by **OldFoo** » Tue Jul 15, 2008 6:18 pm

Don't forget its not real USB, meaning (as far as I am aware) the I/O board can't get its power from the USB cable.

Meaning you'd also need a separate power lead to your control unit (from your atx PSU) too.

Sorry if I'm stating the obvious, its just that you didn't show the power lead in your diagram.
